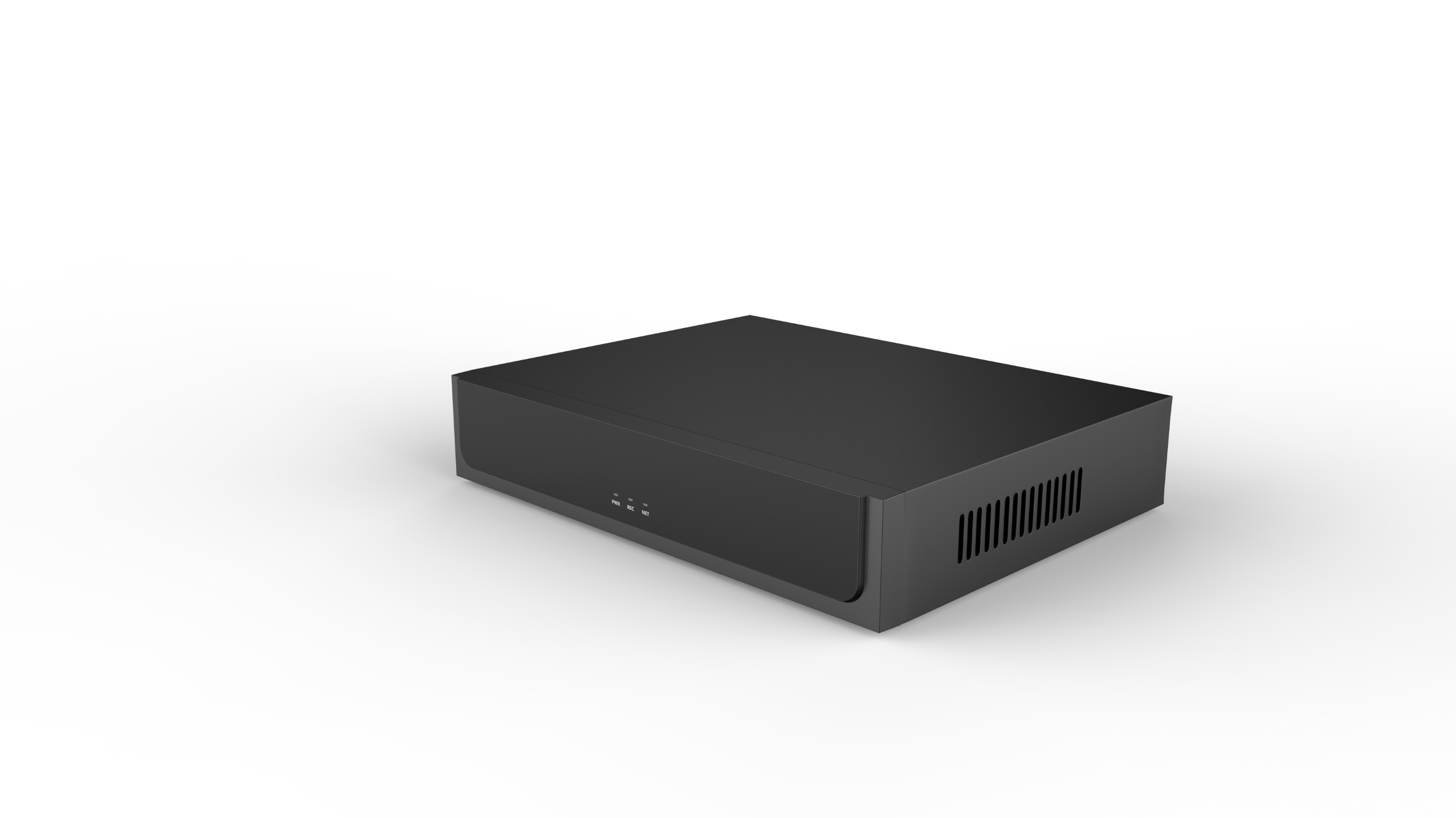

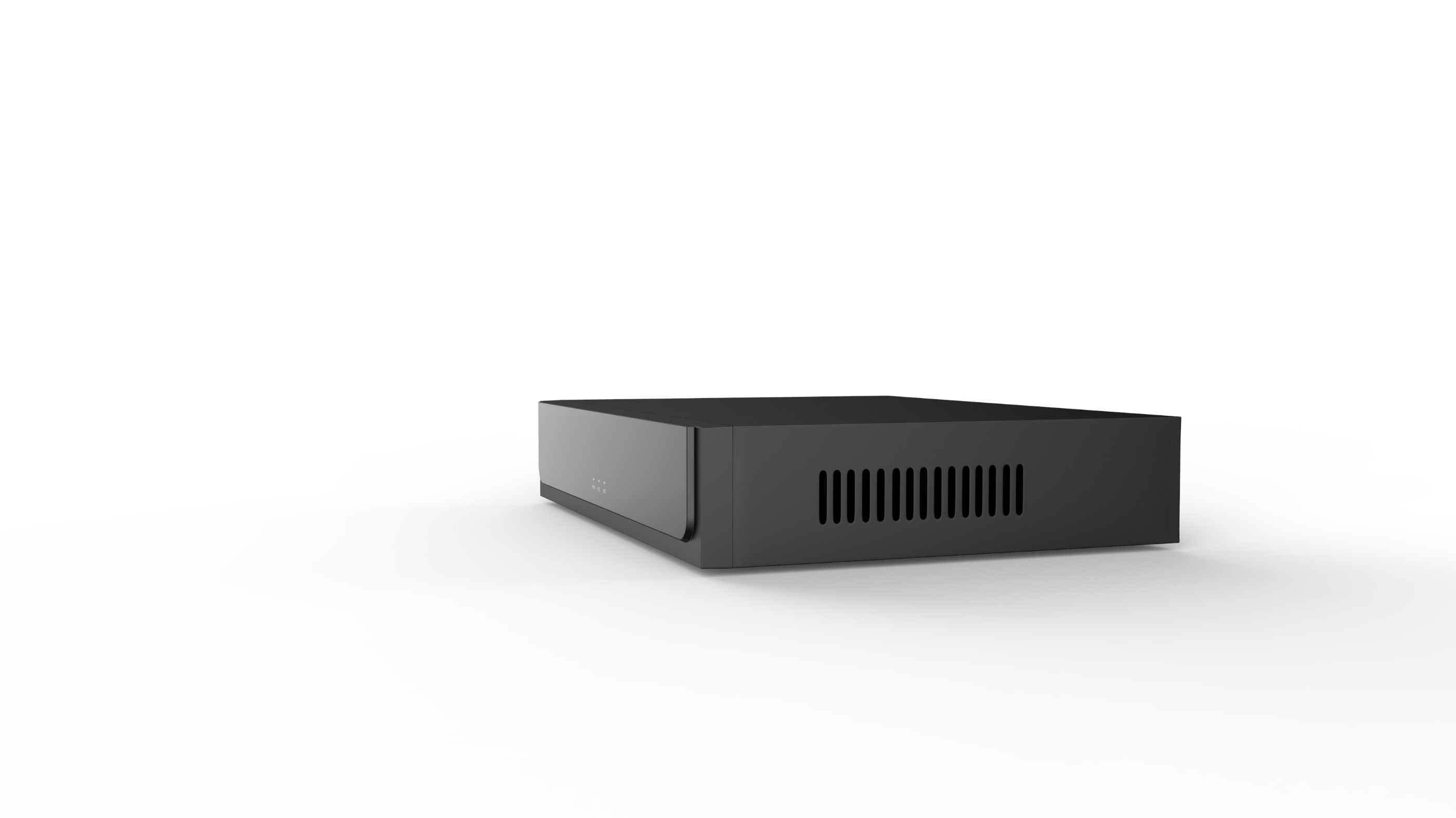

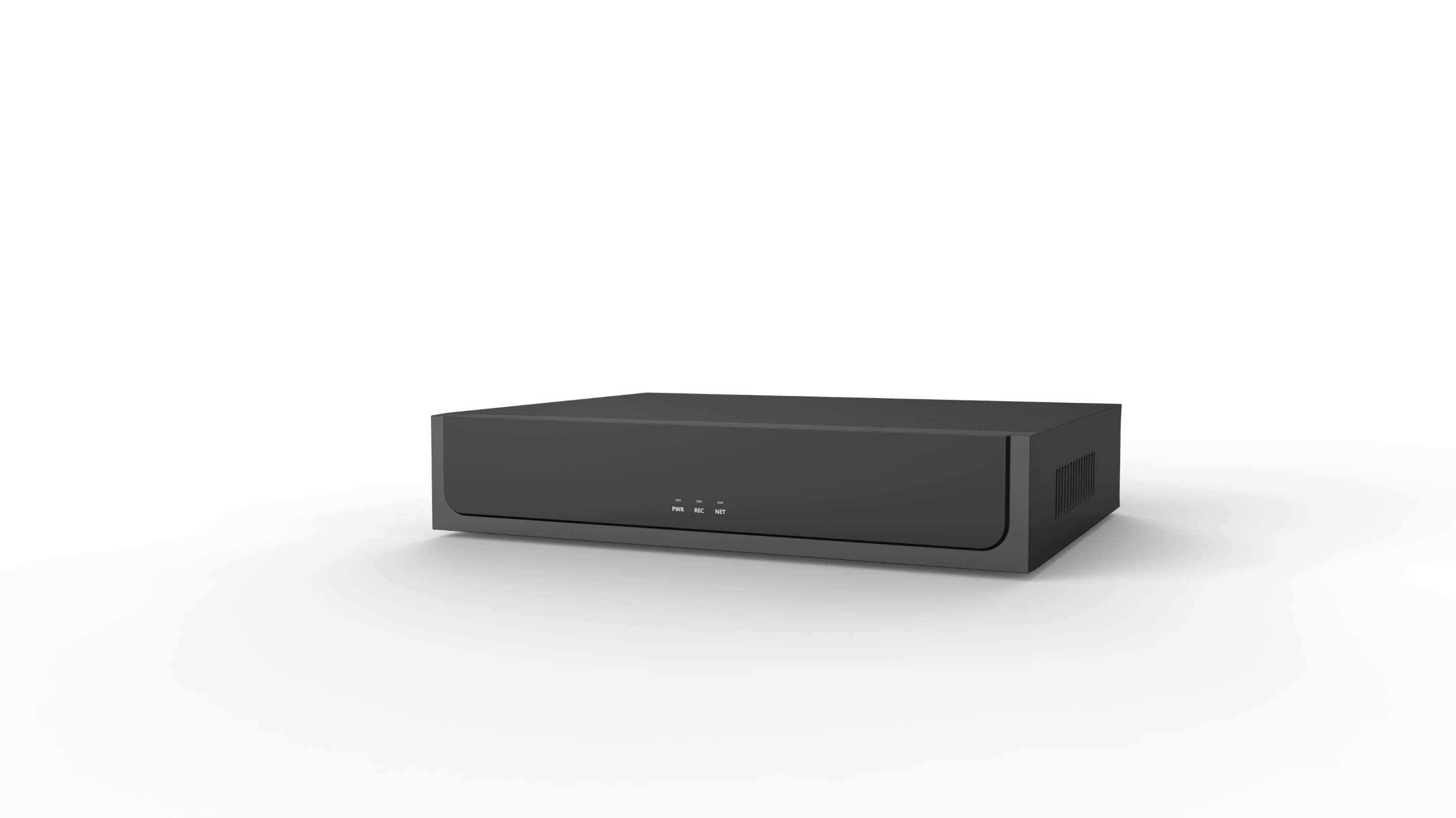

36CH AI Network Video Recorder

Product features
Product parameters
Related downloads

• Embedded Linux real-time operating system realizes various practical functions such as centralized management of IPC, centralized preview, centralized video recording, and alarm;

• Support G.711U, G.711A audio compression to realize real-time monitoring of video recording;

• Support one-click addition, automatically modify the camera IP address to add;

• Support log, video, and other information query and backup;

• Support Videolink cloud service, support remote monitoring of mobile devices such as mobile phones and tablets;

• Support VGA and HDMI interface output video signal at the same time (same source), VGA output up to 1080P; HDMI output up to 4K;

• Maximum support for preview, storage and playback of 12MP high-definition network video;

• Support HDMI and AUX (3.5mm) audio output;

Model Number	N3602
Video in/output	Video input	36CH
Video in/output	Access networking broadband	280M
Video/Audio output	HDMI output	1CH，Resolution：3840×2160、2560×1440、1920×1080、1440×900、1280×1024、1280×720、1024×768
	VGA output	1CH，resolution：1920×1080、1440×900、1280×1024、1280×720、1024×768
	Audio output	2CH，HDMI/AUX Interface（3.5mm）
Video and audio codec parameters	Record resolution	25CH 12MP、36CH 8MP/5MP/4MP/3MP/1080P/720P
	synchronous playback	Instant playback, regular playback, smart playback
	synchronous playback	2CH 12MP/4 CH 8MP/8 CH 4MP/16 CH 2MP
Recorder Management	Backup mode	Regular backup, video clip backup
Hard disck driver	Type	2 pcs SATA
Hard disck driver	Max storage	Mas support 8TB HDD
Interface port	Audio output	1pcs HDMI、AUX（3.5mm）
	Network port	1pcs RJ45 1000M 100M/10M Adaptive Ethernet
	USB port	2 pcs USB2.0
Network management	Network protocol	Support TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P network protocol
Others	Adapter	DC12V 5A（ external adapter ）
	Power comsuption（Without HDD）	≤3.5W
	Work temperature	-10℃～＋55℃
	Work humidity	10%～90%;
	Size	326×220×42(W×L×H) mm
