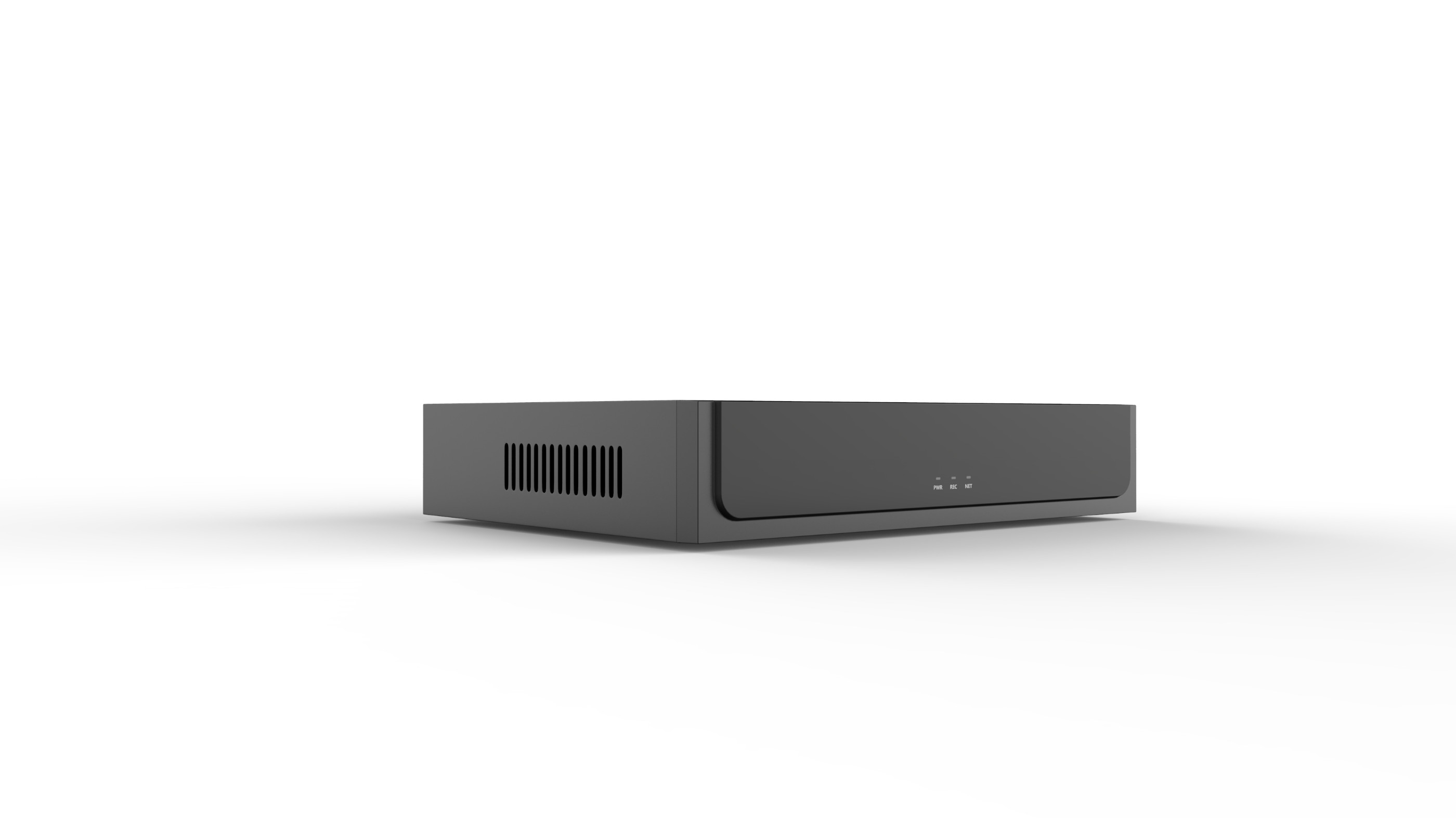

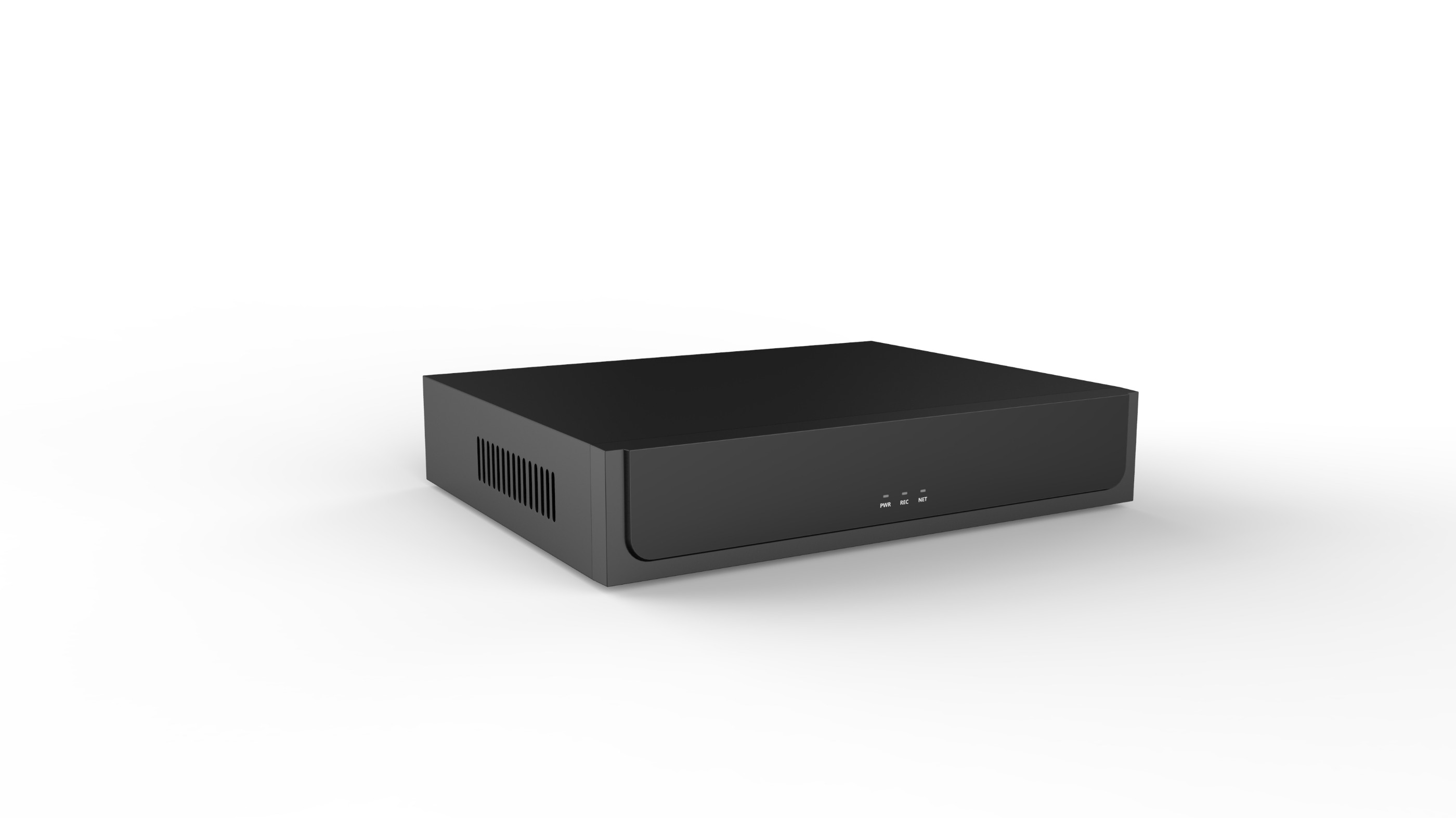

20CH AI Network Video Recorder

Product features
Product parameters
Related downloads

• Embedded Linux real-time operating system realizes various practical functions such as centralized management of IPC, centralized preview, centralized video recording, and alarm;

• Support H.265 video code stream, support H.265, H.264 equipment hybrid access;

• Support ONVIF protocol to ensure the interconnection and intercommunication of network video surveillance products;

• Support G.711U, G.711A audio compression to realize real-time monitoring of video recording;

• Support one-click addition, automatically modify the camera IP address to add;

• Support log, video, and other information query and backup;

• Support Videolink cloud service, support remote monitoring of mobile devices such as mobile phones and tablets;

Model Number	N2001
Video in/output	Video input	20CH
Video in/output	Access networking broadband	80M
Video/Audio output	HDMI output	1CH，Resolution：3840×2160、2560×1440、1920×1080、1440×900、1280×1024、1280×720、1024×768
	VGA output	1CH，resolution：1920×1080、1440×900、1280×1024、1280×720、1024×768
	Audio output	2CH，HDMI/AUX Interface（3.5mm）
Video and audio codec parameters	Record resolution	20CH 8MP、16CH 5MP、20CH 4MP/3MP/1080P/720P
	synchronous playback	Instant playback, regular playback, smart playback
	synchronous playback	1CH 12MP/ 8MP/ 4CH 4MP
Recorder Management	Backup mode	Regular backup, video clip backup
Hard disck driver	Type	1 pcs SATA
Hard disck driver	Max storage	Mas support 8TB HDD
Interface port	Audio output	1pcs HDMI、AUX（3.5mm）
	Network port	1pcs RJ45 10M/100M Adaptive Ethernet
	USB port	2 pcs USB2.0
Network management	Network protocol	Support TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P network protocol
Others	Adapter	DC12V 2A（ external adapter ）
	Power comsuption（Without HDD）	≤3W
	Work temperature	-10℃～＋55℃
	Work humidity	10%～90%;
	Size	122mm72mm2mm
